DYMAX BlueWave® 200 UV Spot Lamp
>17,000 mW/cm²
Patented intensity adjustment feature
LCD display
Compatible with liquid, fiber, single-pole, or multi-pole lightguides
Integrate with pedal or PLC
Extended exposure time settings to 9,999.9 seconds
Integral shutter with digital timer
Fast bulb replacement
Dymax BlueWave® 200 version 3.1 is a high-intensity, light-curing spot-lamp system. This unit emits energy in the UVA and visible portion of the spectrum (300-450 nm) for light curing of adhesives, coatings, and encapsulants. Ideally suited for either manual or automated processes, the system contains an integral shutter which can be actuated by a foot pedal or PLC and a universal power input that provides consistent performance at any voltage. A wide range of light guides in various materials and configurations are available for use with this spot-curing unit, providing application flexibility.
The faceplate design of the BlueWave® 200 V3.1 has an operator interface with an easy-to-read LCD display and patented intensity adjustment control. The control is important for validating an appropriate intensity range and maintaining that range during production. Intensity measurement is easily accomplished with the Dymax ACCU-CAL™ 50 radiometer. Scheduled intensity measurements taken during the production process will indicate whether additional intensity adjustments are required. This method of measurement provides the most accurate readings as they are taken through the lightguide in the actual production setting.

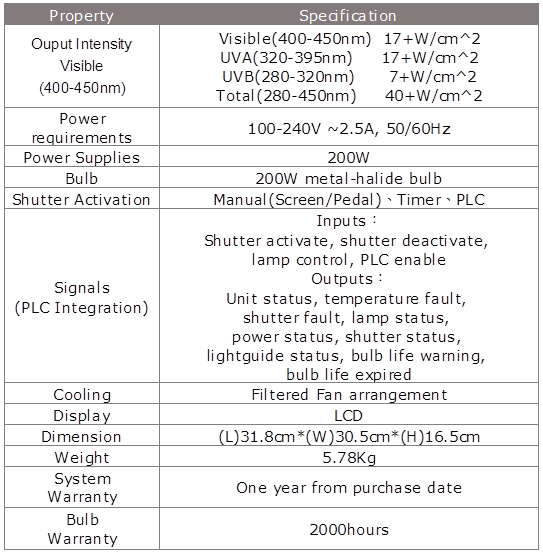

PROPERTY |
Specification |
Initial intensities |
Total (280-450 nm) 40+ W/cm² |
|
Visible (400-450 nm) 17+ W/cm² |
|
UVA¹ (320-395 nm) 17+ W/cm² |
|
UVB (280-320 nm) 7 W/cm² |
Intensity adjustment |
Manual from 1% to 100% output |
Power adjustment |
100-240 VAC, 50-60 Hz, 2.5 Amps |
Power supplies |
Solid-state, 200 Watt |
Bulb |
200 Watt metal-halide bulb included; replacement in less than one minute |
Reflector |
Elliptical; glass with dichroic coating to reflect UV and minimize IR |
Shutter timer |
Digital LCD timer up to 9,999.9 seconds; manual or timed shutter |
Shutter activation |
Foot pedal or PLC |
I/O Port |
15 pin D – sub-miniature connector |
Signals (PLC shutter intregration) |
Inputs: Shutter activate, shutter deactivate, lamp control, PLC enable |
|
Outputs: Unit status, temperature fault, shutter fault, lamp status, power status, shutter status, lightguide status, bulb life warning, bulb life expired |
Cooling |
Filtered fan arrangement; thermally controlled to maintain proper lamp temperature |
Hour meter |
LCD, monochromatic, 320 x 240 px |
Overall Dimensions (W x D x H) |
12.5 in x 12.0 in x 6.5 in [31.8 cm x 30.5 cm x 16.5 cm] |
Weight |
12.75 lbs. [5.78 kg] |
System Warranty |
One year from purchase |
Bulb Warranty |
Ignition warranted for 2,000 hours |
Operating Environment |
10°C to 40°C (50°F to 104°F), 0-80% relative humidity, non-condensing |
