ACCU-CAL® 50 Radiometer

Measurement range up to 40W/cm²
Only one calibration per year
Durable temperature-resistant sensor
Comes with sturdy carrying case
PTB and NIST traceable

The ACCU-CAL™ 50 radiometer UV intensity meter is a simple-to-operate device that measures UV-A (320-390nm) intensity and dose (energy). Degradation of UV curing bulbs, lightguides, and reflectors can significantly reduce intensity, resulting in incomplete cures.

The ACCU-CAL™ 50 allows operators to validate, monitor, and document a UV curing process. A low intensity measurement signals an operator to replace the bulb, lightguide, or reflector. The ACCU-CAL™ 50 can also be used to confirm that operators are properly shielded from UV exposure.

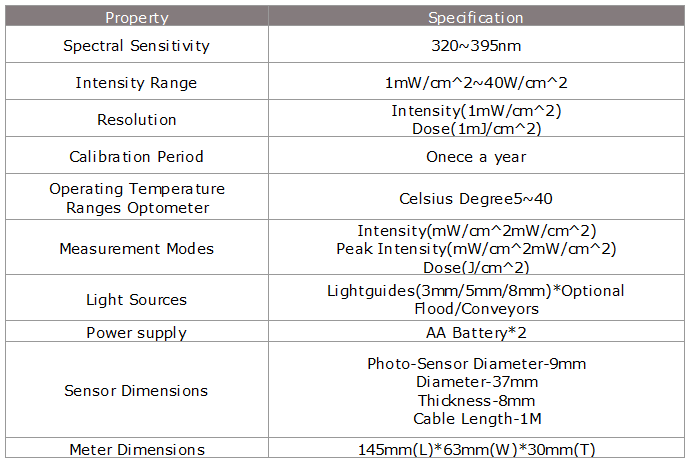

PROPERTY

Specification

Spectral Sensitivity

320 to 395 nm

Intensity Range

1 mW/cm² to 40 W/cm²

Resolution

Intensity (1 mW/cm²; to three significant digits)



Dose (1 mJ/cm²)

Calibration Period

12 months

Operating Temperature Ranges Optometer

+5 to +40°C

Detector

120°C continuous, Peak 200°C

Measurement Modes

Intensity (mW/cm² and W/cm²)



Peak Intensity (mW/cm² and W/cm²)



Dose (J/cm²)

Light Sources

Lightguides (3 mm, 5 mm, and 8 mm)



Floods/Conveyors

Power Supply

Two (2) AA batteries

Battery Life

250 hours (automatic shutoff after 1 hour)

Sensor Dimensions

Photo-Sensor Diameter = 9 mm



Diameter = 37 mm



Thickness = 8 mm



Cable Length = 1 M

Meter Dimensions

120 mm (Length) x 65 mm (Width) x 23 mm (Thickness)
